The CLOUTH® SEAL reduces web breaks, ensures process stability and increased efficiency. With our CLOUTH® MASTER SEALS SOLO we have achieved the perfect combination of maximum system availability and sustainability.

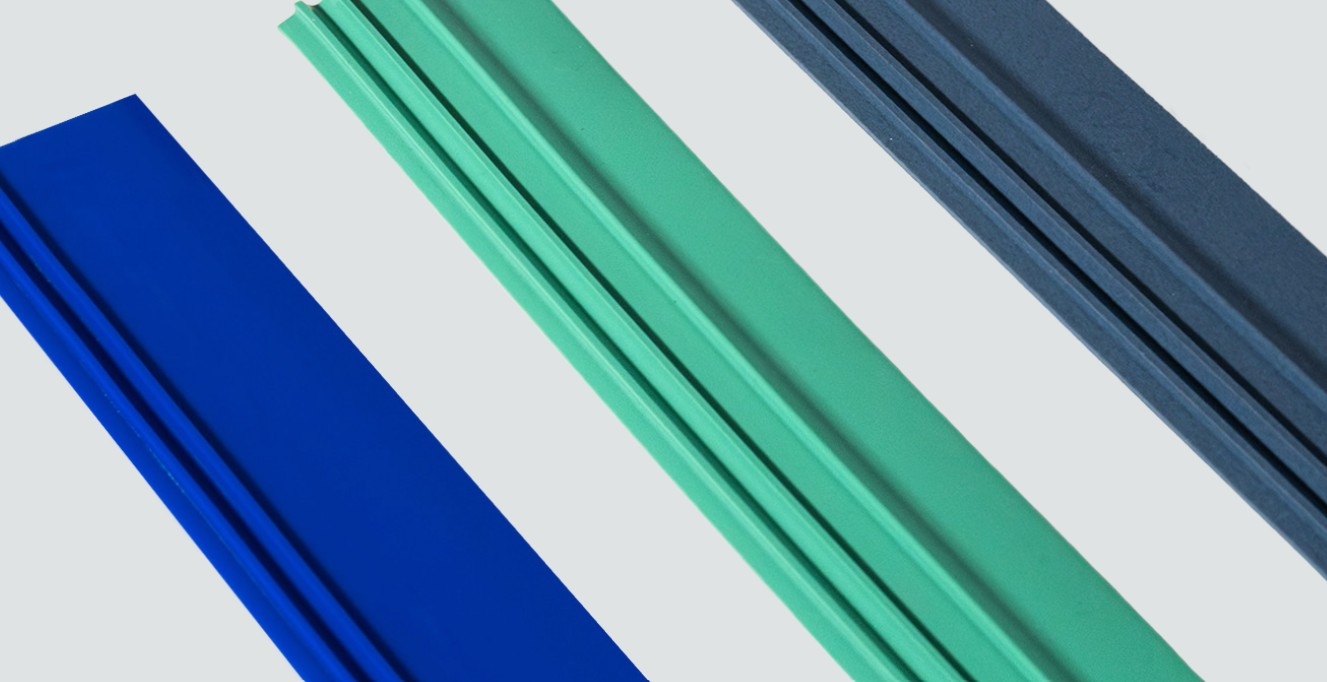

Our CLOUTH® SEAL variants at one glance:
Standard version
Thickness mm (inch): 2.0 (0.08)
Width mm (inch): 51 (2)
Operating temperature: max. 200°C
Design: end-to-end, individual
length; blunted tip
CLOUTH® SEAL BT
Standard version without integrated dirt protection.
Hardness: 90° +/-5 SHORE
CLOUTH® SEAL WDS
Standard version with integrated dirt protection and increased hot steam resistance.
Hardness: 70° +/-5 SHORE A
CLOUTH® SEAL CF
Standard version with integrated dirt protection and increased temperature resistance.
Hardness: 90° +/-5 SHORE A
Thanks to tried, tested and durable materials, practical geometry, and a well thought out holder solution, CLOUTH® SEAL and CLOUTH® MASTER SEAL SOLO offer reliable performance for demanding transfer areas – can be used individually or in combination for optimal results.
The CLOUTH® SEAL sealing strip stabilises the paper web in the transfer area – where it separates from the drying cylinder.
Low friction silicone protects the dryer fabrics and makes installation easy.
The CLOUTH® MASTER SEAL SOLO holder, made from established composite fibre material, offers a low-maintenance,
easy-to-install, and cost-effective solution.
The CLOUTH® SEAL can be replaced in just a few simple steps, and the CLOUTH® MASTER SEAL SOLO holds it securely in
place – even during continuous operation. Both components are designed for long service life and ease of use.
CLOUTH® SEAL and CLOUTH® MASTER SEAL SOLO are designed to work together and can be quickly integrated, especially
when retrofitting existing systems.

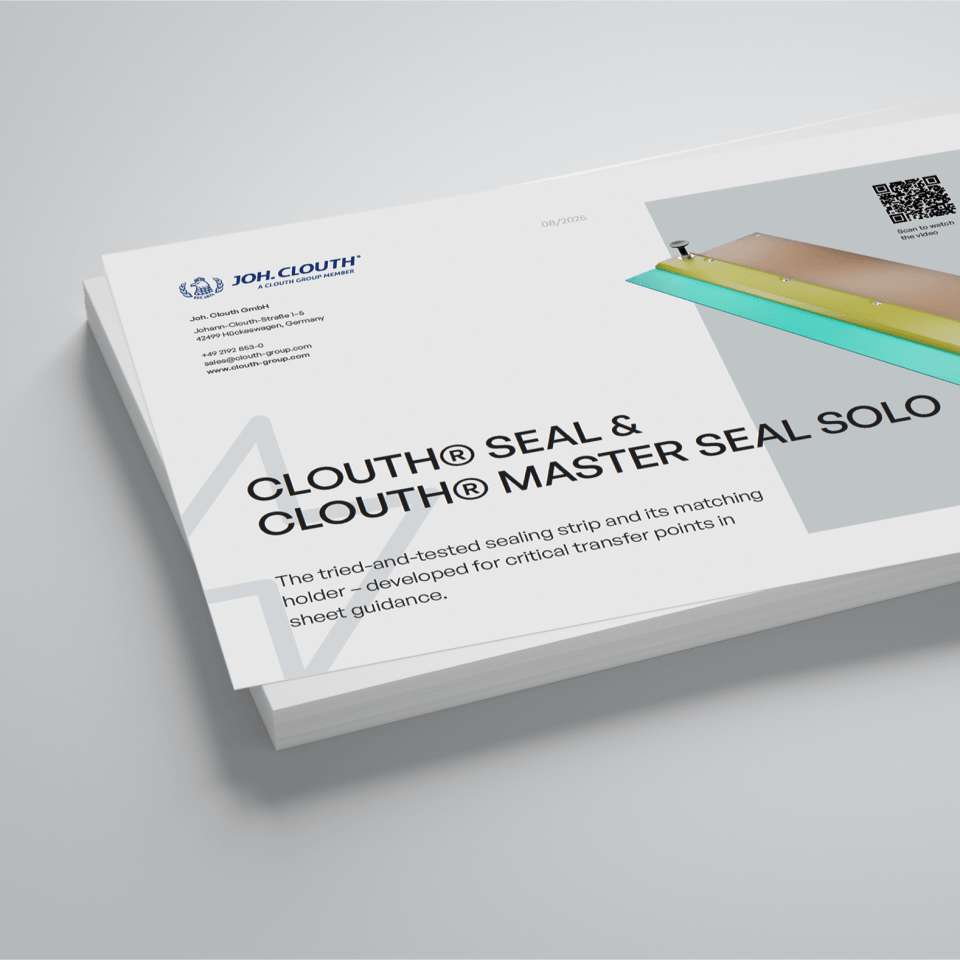

All information about our unbeatable duo for maximum system availability can also be found in our flyer.
